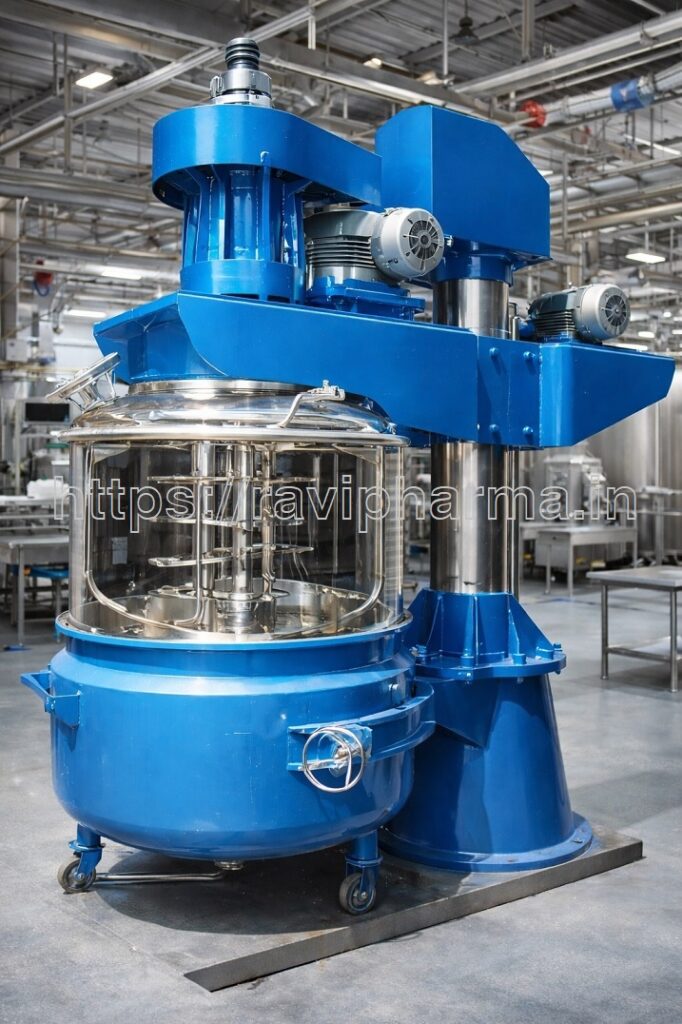

OINTMENT MIXER (VJHSE MODEL)
The Planetary motion of the mixing beater ensures effective homogenous mixing of the various ingredients. Std. Mixer consists of single mixing . beater which rotates in planetary motion i.e. clock wise direction about the central axis, anticlock wise direction about its own axis.
The main drive, lifting and lowering operations is motorised. The product bowl is mounted on caster wheel for easy portability for washing and transporting the material. Vacuum Jacketed Mixer consists of 2 open beaters moving in planetary motion, scraper blade ¢rally located high shear emulsifier run by separate motor for mfr. of creams, ointments, suspensions etc.
TECHNICAL SPECIFICATIONS :
| Model | S-200 | S-350 | S-500 | S-200 | S-350 | S-600 |
|---|---|---|---|---|---|---|
| Gross Cap | 220 Ltrs | 380 Ltrs | 520 Ltrs | 220 Ltrs | 380 Ltrs | 650 Ltrs |
| Bowl ID mm | 750 | 900 | 1050 | 750 | 900 | 1100 |
| Bowl Ht mm | 500 | 600 | 100 | 175 | 250 | 375 |
| Main Motor | 7.5 HP | 10.0 HP | 15.0 HP | 7.5 HP | 10.0 HP | 15.0 HP |
| Lift Motor | 1.0 HP | 1.5 HP | 2.0 HP | 1.0 HP | 1.0 HP | 2.0 HP |
| Emulsifier | – | – | – | 3.0 HP | 5.0 HP | 7.5 HP |
| Overall Dim. in mm | 1100 x 1900 x 2100 | 1100 x 2200x 2450 | 1400 x 2750 x 2500 | 1100 x 2100 x 2450 | 1255 x 2775 x 2600 | 1525 x 2775 x 2850 |
| Net Wt. Kgs. | 1500 | 1800 | 2600 | 1800 | 2400 | 3500 |
| Gross Wt. Kgs. | 2100 | 2400 | 3200 | 2400 | 3150 | 4250 |
RAVI – Ointment Mixer : are available with double / triple entry agitators having various combinations like mill, dissolver, Anchor scrapper stirrer, sinus, contra motion stirrer. These have a wide range of applications in Pharma, Cosmetic, food and chemical industry. Mixers are normally stand alone constructions with an option for S.S. working and loading platforms.
The mixers normally consists of:
- Basic vessel with hemispherical/torrispherical bottom and flush valves for quick drainage.
- Top Dish / cover with :
Illuminated sight glass
Temperature probe
Vacuum Regulation Cock
CIP nozzle
Handhole / view port
- Charging nozzle :
The dish is provided with hydraulic raise/ lower arrangement with suitable cylinder and guide bars and limit switches to control traverse. Smaller units can be provided with tilting arrangements - Jacket for heating/ cooling with suitable inlets/ drains/ vent/ and manifolds with safety valve pressure gauge arrangement.
- SS covers with glass wool lagging for better aesthetics and GMP.
- Solid State/ normal electric panel with controls and timers leading to easy operations. Programmable panels with printers are also available as option.
TECHNICAL SPECIFICATIONS :
MIXER | HOMOGENISER HP | SCRAPPER STIRRER HP | DIMENSION IN MM | |||
L | B | H | KG | |||
75 | 3 | 3 | 2200 | 900 | 1700 | 800 |
150 | 7.5 | 3 | 2500 | 1000 | 1000 | 1600 |
250 | 10 | 5 | 2700 | 1500 | 1500 | 2400 |
500 | 10 | 7.5 | 2900 | 2000 | 2000 | 3100 |
1000 | 15 | 10 | 3000 | 3000 | 2200 | 4000 |
1500 | 17.5 | 15 | 3100 | 3000 | 2200 | 5000 |
2000 | 20 | 25 | 3200 | 3100 | 2500 | 5800 |
3000 | 20 | 30 | 3200 | 3200 | 2600 | 6100 |
