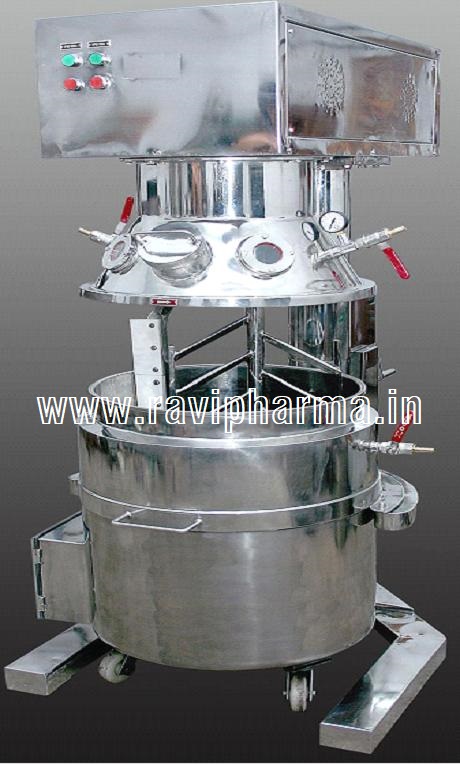

PLANETARY MIXER (POWDER)


DESCRIPTIONS : Planetary Mixers are used for dry mixing & dough mixing. The homogenous mixing of various ingredients of different densities in different proportions for solid/solid, liquid/solid, and liquid/liquid is achieved effectively by the use of Planetary Mixer.
All contact parts are made from S S 304 or SS 316 steel as per client’s requirements. Standard Mixer is available in 60, 120, 200, 350 and 500 ltrs. capacities.
The Planetary motion of the mixing beater ensures effective homogenous mixing of the various ingredients. Standard Mixer consists of single mixing beater which rotates in planetary motion i.e. clock wise direction about the central axis and anti-clock wise direction about its own axis. The main drive, lifting and lowering operations is motorised. The product bowl is mounted on castor wheels for easy portability for washing & transporting the material.
Technical Specifications:
Model |
S60 |
S120 |
S200 |
S350 |
S500 |
Gross Capacity Ltrs |
60 |
120 |
220 |
380 |
520 |
Bowl ID mm |
460 |
510 |
750 |
900 |
1050 |
Bowl Ht mm |
410 |
550 |
500 |
600 |
600 |
Bowl Shape |
Hemispherical |
Hemispherical |
Flat Dish |
Flat Dish |
Flat Dish |
Beater type |
Heart |
Heart |
Anchor |
Anchor |
Anchor |
Main Motor HP |
2 (dual Speed) |
5 (dual speed) |
7.5 (dual speed) |
10 (dual speed) |
15 (dual speed) |
Lift Motor HP |
Manually |
Manually |
1.0 |
1.5 |
2.0 |
Overall Dimensions mm |
900L x 750W x 1450Ht. |
1050L x 850W x 1550Ht. |
1900L x 1100W x 2100Ht. |
2200L x 1100W x 2450Ht. |
2750L x 1400W x 2500Ht. |
Net Wt. Kgs |
350 |
550 |
1500 |
1800 |
2600 |
Gross Wt. Kgs |
500 |
750 |
2100 |
2400 |
3200 |
