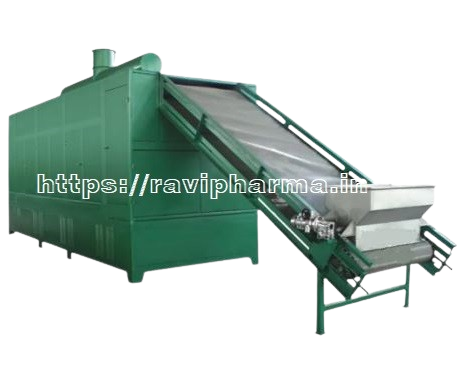

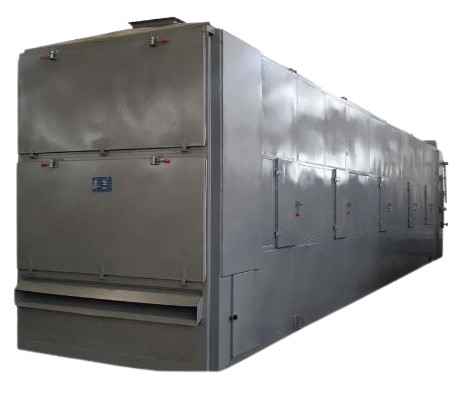

RAVI – Continuous conveyor mesh belt dryer machine is a continuous working drying equipment. Belt dryer is used for drying pieced materials, sliced materials, strips, and granular materials with good ventilation.
Especially suitable for the materials which have high water content and works without high temperature, such as dehydrated vegetables, herbal medicines of traditional indian medicines, etc.
Can also dry paste material of de-watering filtering cakes after being made into granules or slices.
Widely used in pharmacy, chemical, food stuff, plastic products, gum, electron, de-watering vegetable, additive, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acryl fiber, medicine, medical material, small wooden product, aging and solidification of the electronic components.

Working Principle :-

The belt is sized at 12-60 mesh, made of stainless steel wire screen. The materials are put on the belt by the feeder, and continuously moves from one side to the other side inside the dryer by a transmitting device.
Composed of several units with separate circulating hot air. Some exhausted air is discharged from a special moisture-discharging blower. The waste air is controlled by a valve. The hot air passes through the belt from the top to the bottom or from the bottom to the top to complete the process of transferring and exchanging heat and mass, and takes out the moisture inside the raw materials. The circulation units can be freely equipped according to customers demand.

• The speed of the belt can be freely adjusted as per the heating temperature of the materials.
• The number of drying units can be customized according to request.
• Air pressure and air volume can be adjusted.
• Drying temperature and drying area can be controlled.
• We can add necessary auxiliary equipment and use different process to meet different characteristics of raw materials.
